Sunday, 6 August 2017

Video Kurnia Al Rizq di Youtube

Video Menguji Keupayaan Mesin CNC Buatan Kurnia Al Rizq - 3D Machining pada plate aluminium.




Demo Sand Blasting Machine Semi Auto Oleh Kurnia Al Rizq




* video hak exclusive Kurnia Al Rizq*


Friday, 21 July 2017

Panel Pengesah Soalan Latihan Kemahiran

Kami dari Kurnia Al Rizq dengan rendah diri berterima kasih kepada pihak Jabatan Pembangunan Kemahiran Kementerian Sumber Manusia Malaysia kerana menjemput dan memberi kepercayaan kepada kami terutamanya Pengurus kami iaitu Encik Mohd Azam untuk menghadiri mesyuarat Jawatankuasa Pengesahan Kurikulum & Penilaian JKPKP sebagai Panel Pengesah Soalan Latihan Kemahiran bagi NOSS (Pembangunan Produk Industri) (MC-040-3:2013).


Mesyuarat tersebut diadakan 3 kali iaitu pada 16/5/17 , 14/6/17  di Ibis Hotel Cheras dan pada 17/7/17 di Cyberjaya.



Mesyuarat JKPKP sebagai Panel Pengesah Soalan Latihan Kemahiran bagi NOSS

Monday, 20 February 2017

Mesin CNC Router (CNC Router Machine) 5

Berikut adalah antara mesin cnc router yang telah ditempah oleh pelanggan kami. Kami merupakan syarikat membuat mesin cnc router (Manufacturing CNC Router Machine) secara 'custom-made' PERTAMA di Malaysia.

Kami membuat mesin cnc router, cnc plasma, cnc milling, cnc stone, 3d printer, sand blasting mengikut keperluan industri anda. Hubungi kami untuk maklumat lanjut.

Email: kurnia.alrizq@gmail.com


012-5974 968 / 012-3647 189 (9am - 6pm)

Follow kami di:-
FB: Kurnia Al Rizq Ent.
Instagram: Kurnia Al Rizq


Ditempah untuk: Salah sebuah institut kemahiran Malaysia.

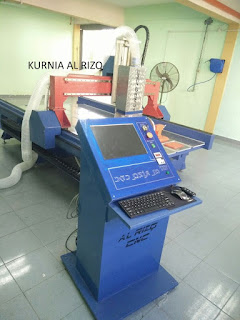

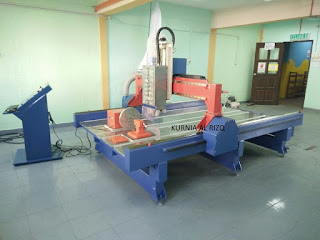

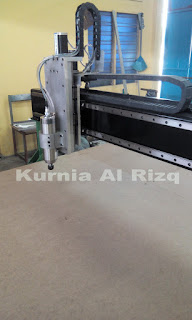

CNC Router



Al Rizq CNC


4 Axis CNC Router Machine (CNC 1MN05-3)
Model No: 4 AXIS CNC 1MN05-3.
Remarks: (For Engrave and Cut PVC, Wood, Acrylic, Foam Board, MDF
Board, Aluminum Sheet Max 5mm Thickness).
------------------------------------------------------
Machine Platform Size (mm): L 3200 X W 1800 ±
Working Area Size (mm): L 2400 X W 1200 X Z clearance 200mm±
Main Frame: Welded mild steel & I-Beam
Motor Driver: MICRO STEP
Motor: Nema34– 60V / 1.8 Degree.
Linear Motion: LINER GUIDE
Driving Movement: Ball Screw and Rack & Pinion

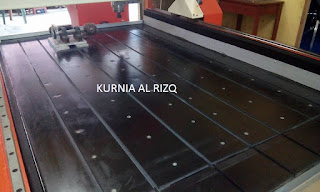

Surface Top: Aluminum
Clamp: SCREW CLAMPING
Spindle Motor: 5.0kw Water Cooled Spindle (Metal)
Spindle Speed: Max 18,000 RPM
Collet: ER25 tool shank range from Ø1mm to Ø16mm
Engraving Speed: 0.5 – 2.5 M/MIN
Jog Speed: 2000MM/MIN
Work Speed: 500MM – 2000MM/MIN (different materials differ)
Accuracy: 0.05mm (every 300mm), 0.02 ( every 100mm)
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3
.
Inclusive Of:-
Vectric Aspire Cam Software.
Collect Set For Spindle (ER25).
Clamping set.
Optional Accessories:
Dust Collector Vacuum (excluding site installation)
Hand Held Jog Pendent
.
Machine Features:-
 Able to process various type of machining programs such 2D
cut, 3D cut, Engraving, Pocketing, Fluting, V Craving and
etc…
 4th axis attachment for ‘A’ rotary process.
 Easy learning curve motion controller software (Especially
for beginner.)
 Simple machining code input.
 High power (hp) spindle that able to cut aluminum plate
(5mm thick).
 Easy maintenance rack and pinion drive.

 Low maintenance cost.





Ditempah Oleh: Sebuah Syarikat Persendirian - Johor Bahru

CNC Router For Stone


Table Top from Epoxy Casting




3 Axis CNC Router For Stone
-------------------------------------
SPECFICATIONS CNC 1M0305 (For Stone, Mozek, Granite, Wood, Acrylic.)

MACHINE PLATFORM SIZE (mm): W 1500 X L 2100 ±
WORKING  AREA SIZE (mm): X 900 x Y 1500 x Z clearance 180mm±
MAIN FRAME: Welded Mild Steel
MOTOR DRIVER: MICRO STEP
MOTOR: Nema23 Stepper Motor – 1.8˚/Step & Nema34 Stepper Motor – 1.8˚/step.
LINEAR MOTION : LINER GUIDE
DRIVING MOVEMENT: Ball Screw and Rack & Pinion
SURFACE TOP: Epoxy
CLAMP: SCREW CLAMPING
SPINDLE MOTOR: Belt drive BT30 Spindle (2.2kw single phase)
SPINDLE SPEED MAX: 18,000 RPM
COLLET: ER20 tool shank range from 1 to 13mm.
ENGRAVING SPEED: 0.5 – 2.5 M/MIN
JOG SPEED: 2000MM/MIN
WORK SPEED: 500MM – 2000MM/MIN (different materials differ)
ACCURACY : 0.05mm (every 300mm)
COMMAND: G CODE/TAP Files/NC Files.
MULTI TASK: 2D /3D. YES – Engraving and Cutting.
CONTROLLER: PC-Base through parallel port.
SOFTWARE ENVIROMENT: Window XP - 32 Bits.
ACCEPTABLE SOFTWARE: MACH3
Moving Pattern: Gantry Moving



Ditempah Oleh: Syarikat Persendirian - Sungai Buluh, Selangor


4 Axis CNC Router Machine

Al Rizq CNC

Training

Training



4 Axis CNC Router
-----------------------
SPECFICATIONS CNC 1MN05 (For Engrave and Cut PVC, Wood, Acrylic, Foam Board, PCB Board)

MACHINE PLATFORM SIZE (mm): L 3000 X W 1700 ±
WORKING  AREA SIZE (mm): L 2500 x W 1200 x Z clearance 200mm±
MAIN FRAME: Welded Mild Steel and I-Beam
MOTOR DRIVER: MICRO STEP
MOTOR: Nema23 Stepper Motor – 1.8˚/Step
LINEAR MOTION : LINER GUIDE
DRIVING MOVEMENT: Ball Screw and Rack & Pinion
SURFACE TOP: MDF Board
CLAMP: SCREW CLAMPING
SPINDLE MOTOR:  2.2kw water cooled spindle
SPINDLE SPEED MAX: 18,000 RPM
COLLET: ER20 tool shank range from 1 to 13mm.
ENGRAVING SPEED: 0.5 – 2.5 M/MIN
JOG SPEED: 2000MM/MIN
WORK SPEED: 500MM – 2000MM/MIN (different materials differ)
ACCURACY : 0.05mm (every 300mm)
COMMAND: G CODE/TAP Files/NC Files.
MULTI TASK: 2D /3D. YES – Engraving and Cutting.
CONTROLLER: PC-Base through parallel port.
SOFTWARE ENVIROMENT: Window XP - 32 Bits.
ACCEPTABLE SOFTWARE: MACH3
Moving Pattern: Gantry Moving

Accessories:-
Dust Collector Vacuum (excluding site installation)
4th Axis Rotary Diameter 300mm
UcanCam Pro



Wednesday, 15 February 2017

Kurnia Al Rizq Dalam Potret Niaga TV3

Saksikan bisnes kami dalam rancangan Potret Niaga TV3 pada hari Isnin (28/12/2015) jam 6 petang.






Untuk yang terlepas menonton, boleh saksikan video penuh syarikat kami di link Youtube berikut:-




Tuesday, 14 February 2017

Mesin CNC Router (CNC Router Machine) 4

Berikut adalah antara mesin cnc router yang telah ditempah oleh pelanggan kami. Kami merupakan syarikat membuat mesin cnc router (Manufacturing CNC Router Machine) secara 'custom-made PERTAMA di Malaysia.

Kami membuat mesin cnc router, cnc plasma, cnc milling, cnc stone, 3d printer, sandblasting mengikut keperluan industri anda. Hubungi kami untuk maklumat lanjut.

Email: kurnia.alrizq@gmail.com
012-5974 968 / 012-3647 189 (9am - 6pm)



Ditempah Oleh: Syarikat Antarabangsa dari German yang beroperasi di Johor (Johor)

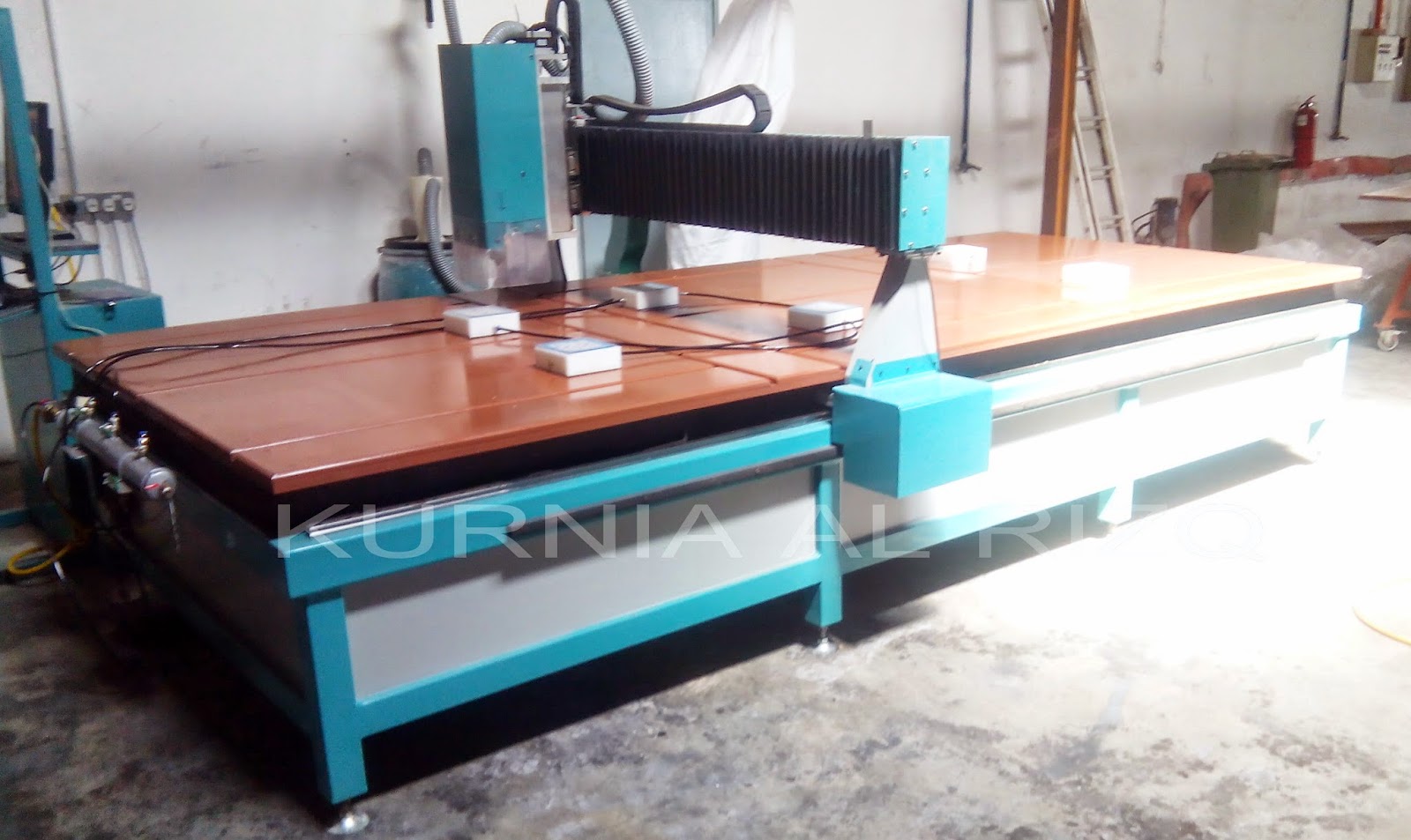

CNC Router Machine

Custom-made spec and size cnc router machine by Kurnia Al Rizq

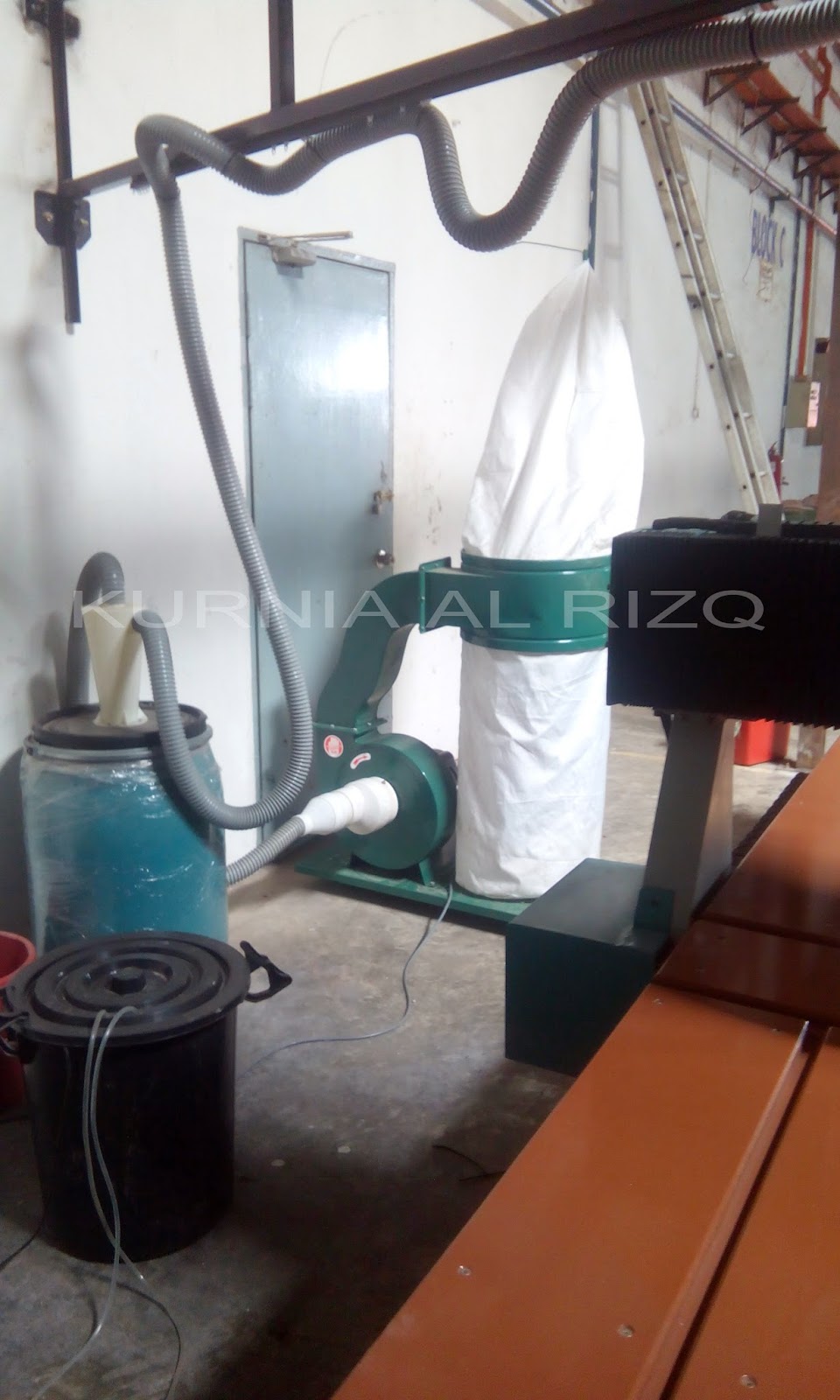

Dust Collector (Drum Type)

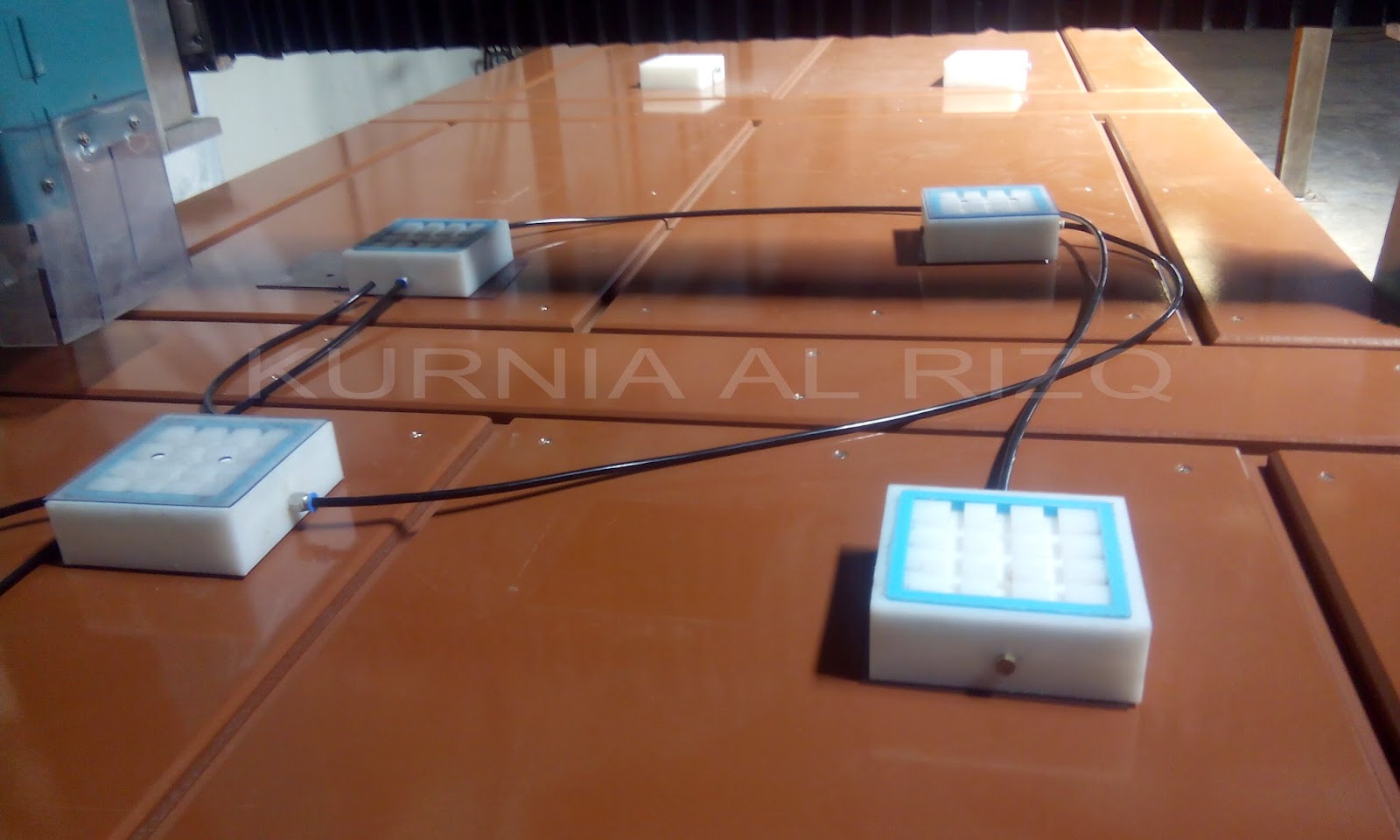

Vacuum Table Block

Training and demo
We are very proud and honored to have been entrusted by an international company from German to make them cnc router machine.

3 Axis CNC Router Machine
Machine Platform Size (mm): L 4000 X W 1700 ±
Working  Area  Size (mm): L 3000 X L 1500 X Z clearance 200mm
Main Frame: WELDED MILD STEEL
Motor Driver: MICRO STEP
Motor: Nema34 Stepper Motor  DC60V/3Amp, DC36V/2.8Amp
Linear Motion:  LINER GUIDE
Driving Movement: Ball Screw / Rack and Pinion
Surface Top: 18mm MDF Board x 2 Layer
Clamp: SCREW CLAMPING
Spindle Motor:  6.5kw Water Cooled Spindle
Spindle Speed Max: 18,000 RPM
Collet: ER32
Command: G CODE/TAP Files/NC Files.
Multi Task: 2D /3D. YES – Engraving and Cutting.
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3

Optional Accessories:
-Dust Collector (Drum Type)

-Vacuum Table Block (Detachable) – 6pcs




Ditempah Oleh:  ( Johor )

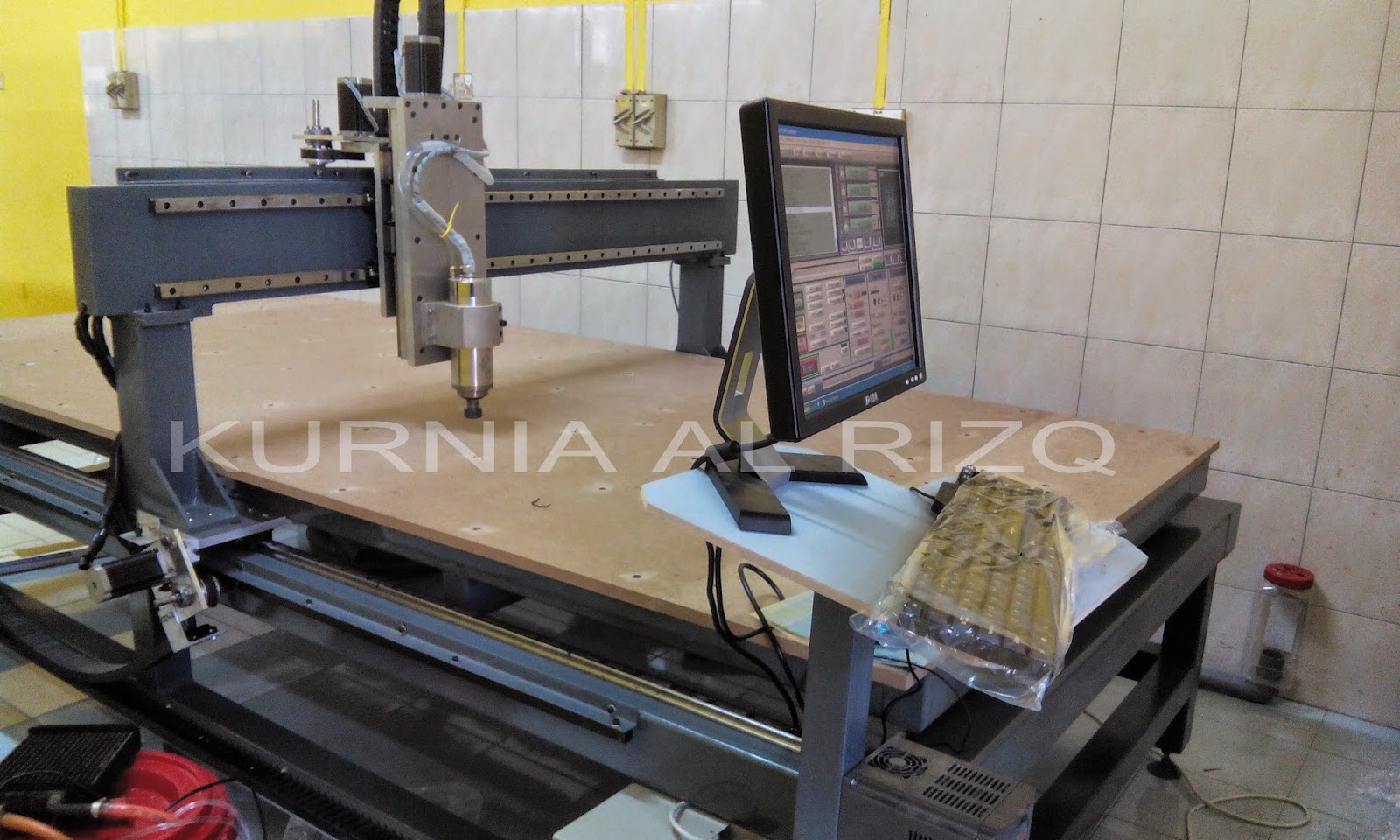

CNC Router Machine


2.2kw Water Cooled Spindle


Custom-made CNC Router Machine by Kurnia Al Rizq

3 Axis CNC Router Machine
Machine Platform Size (mm): L 3000 X W 1700 ±
Working  Area  Size (mm): L 2500 X L 1200 X Z clearance 200mm
Main Frame: WELDED MILD STEEL
Motor Driver: MICRO STEP
Motor: Nema34 / Nema23 Stepper Motor  DC60V/3Amp, DC36V/2.8Amp
Linear Motion: LINER GUIDE
Driving Movement: Ball Screw / Rack and Pinion
Surface Top: 18mm MDF Board
Clamp: SCREW CLAMPING
Spindle Motor: 2.2kw Water Cooled Spindle
Spindle Speed Max: 24,000 RPM
Collet: ER20
Command: G CODE/TAP Files/NC Files.
Multi Task: 2D /3D. YES – Engraving and Cutting.
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3

Optional Accessories:
-Dust Collector
-Radiator Cooling System


Ditempah oleh: Syarikat Persendirian (Kelantan)

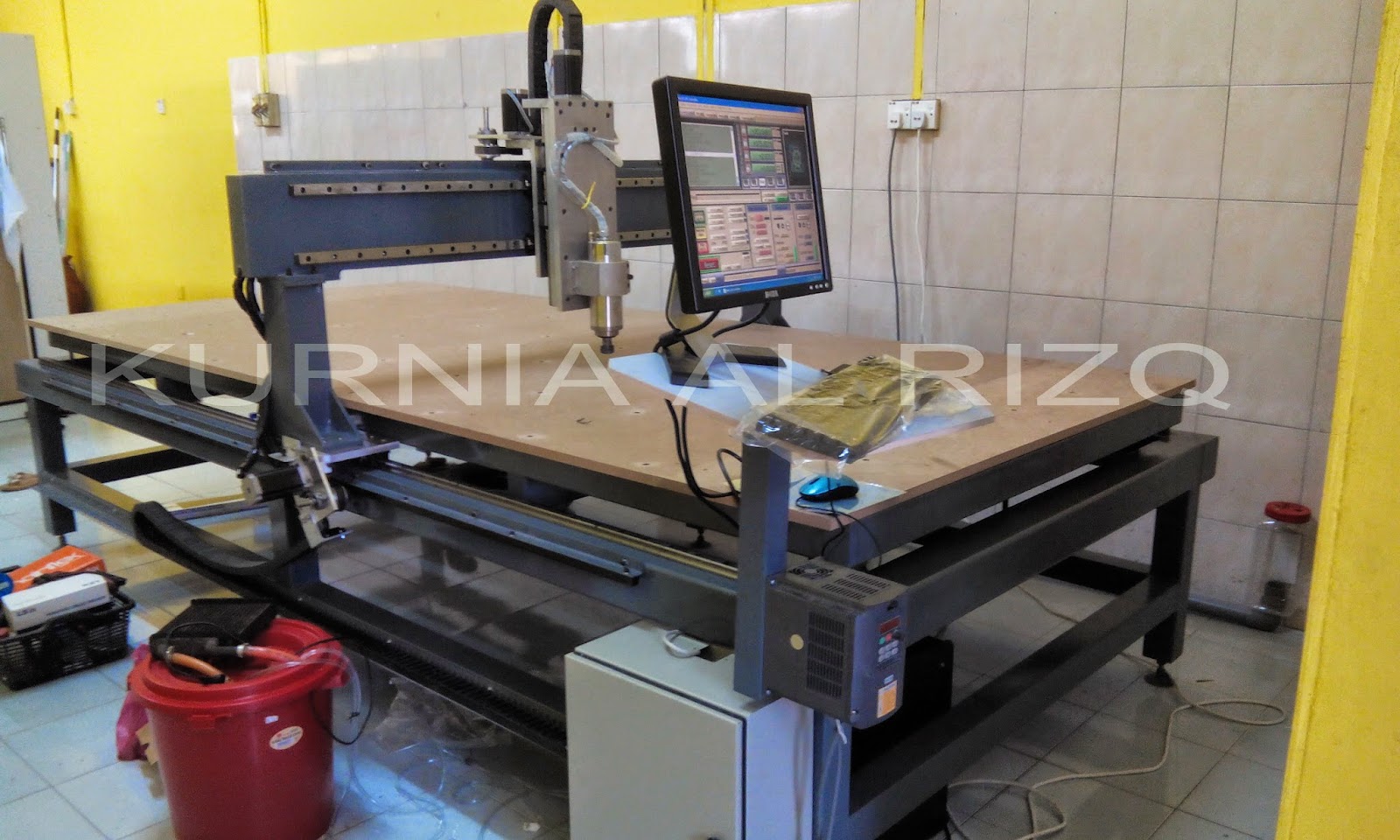

CNC Router Machine - working area 1800mm x 1200mm

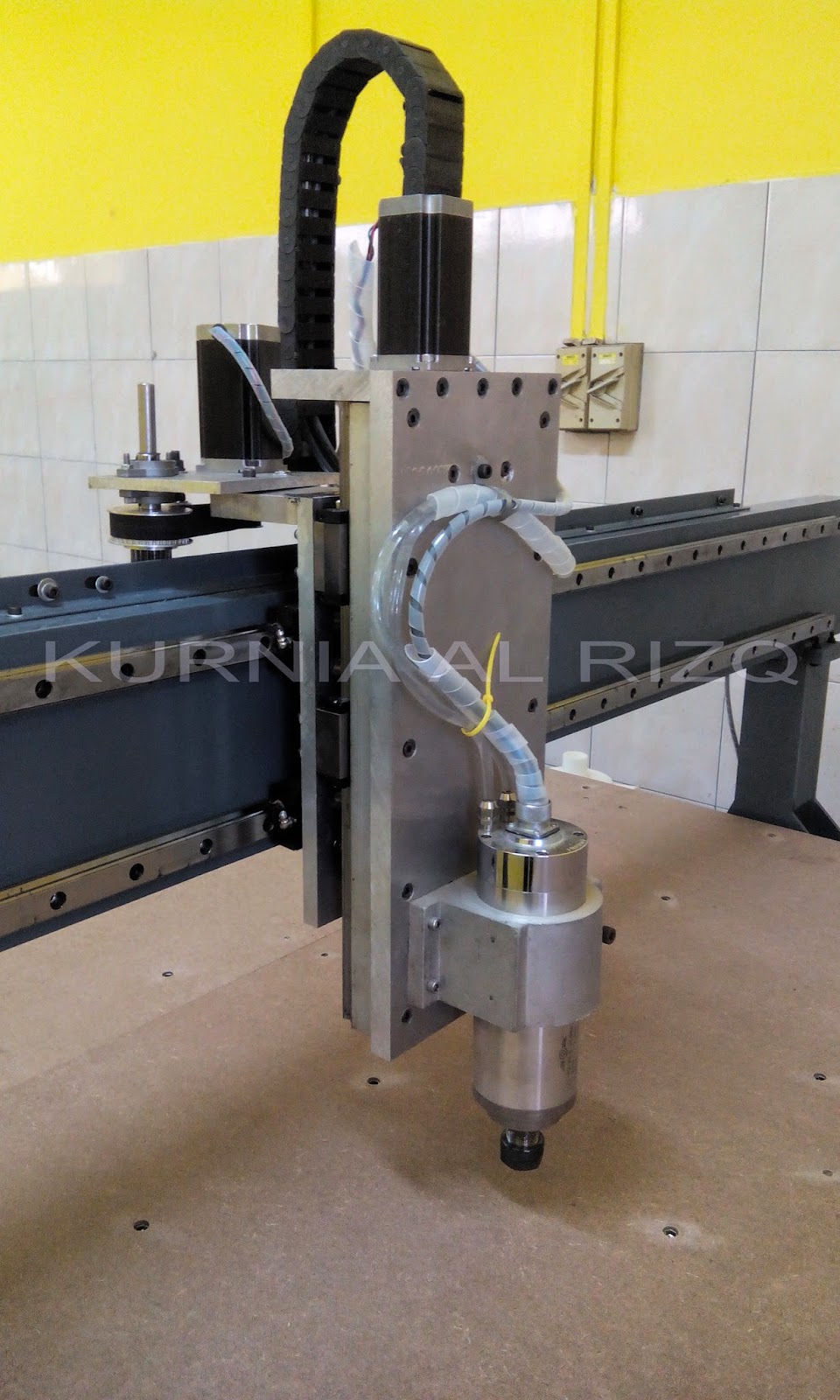

2.2kw water cooled spindle



3 Axis CNC Router Machine
Machine Platform Size (mm): L 2200 X W 1700 ±
Working  Area  Size (mm): L 1800 X W 1200 X Z clearance 200mm
Main Frame: Welded mild steel and I-Beam
Motor Driver: MICRO STEP
Motor: Nema34 / Nema23 Stepper Motor  DC60V/3Amp, DC36V/2.8Amp
Linear Motion:  Liner Guide
Driving Movement: Ball Screw and Rack and Pinion
Surface Top: 18mm MDF Board
Clamp: Screw clamping
Spindle Motor:  2.2kw Water Cooled Spindle
Spindle Speed Max: 18,000 RPM
Collet: ER20
Cooling System: Water Pump.
Command: G CODE/TAP Files/NC Files.
Multi Task: 2D /3D. YES – Engraving and Cutting.
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3
Moving Pattern: Gantry Moving.

Suitable for 3D processing, engrave and cut PVC, Wood, Acrylic, Foam Board, MDF Board (non-metal material)

1. normal frame steel and I-Beam, to ensure the structure stable. low inertia and no distortion during high-speed working.
2. assemble with linear guide and anti backlash ballscrew (Z axis) and rack and pinion (X and Y Axis) to ensure high accuracy, low noise and long life.
3. spindle with constant torque, high performance drive motor to ensure the long time and stable working.
4. Mach3 computer control with simple operating software and easy to learn.

* pls contact us for full specifications*



                                                      Ditempah oleh: IKM Lumut (Perak)

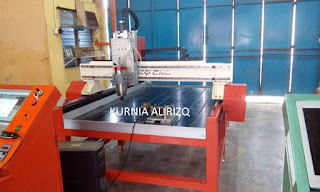

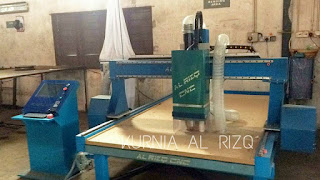

4 Axis CNC Router Machine

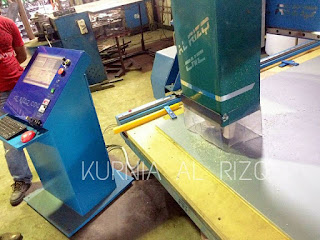

Al Rizq CNC Controller Panel



4 Axis CNC Router Machine
Machine Platform Size (mm): L 3200 X W 1800 ±
Working  Area  Size (mm): L 2400 X W 1200 X Z clearance 200mm
Main Frame: Welded mild steel and I-Beam
Motor Driver: MICRO STEP
Motor: Nema34 Stepper Motor  DC60V/3Amp,
Linear Motion:  Liner Guide
Driving Movement: Ball Screw and Rack and Pinion
Surface Top: Aluminum
Clamp: Screw clamping
Spindle Motor:  5.0kw Water Cooled Spindle (Metal)
Spindle Speed Max: 18,000 RPM
Collet: ER25
Cooling System: Water Pump.
Command: G CODE/TAP Files/NC Files.
Multi Task: 2D /3D. YES – Engraving and Cutting.
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3
Moving Pattern: Gantry Moving.

This machine inclusive of:
Vetric Aspire Cam Software
Collect Set For Spindle (ER25).
Clamping Set.
Dust Collector Vacuum (excluding site installation).
Hand Held Jog Pendent.

Machine Features:-
* Able to process various type of machining programs such 2D cut, 3D cut, Engraving, Pocketing, Fluting, V Craving
and etc…
* 4th axis attachment for ‘A’ rotary process.
* Easy learning curve motion controller software (Especially for beginner.)
* Simple machining code input.
* High power (hp) spindle that able to cut aluminum plate (5mm thick).
* Easy maintenance rack and pinion drive.
* Low maintenance cost.


Ditempah oleh: Kolej Yayasan Pelajaran Johor (KYPJ) - (Johor)

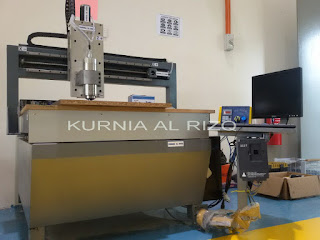

3 Axis CNC Router


Mach3 Controller



3 Axis CNC Router Machine
Machine Platform Size (mm): L 900 X W 700 ±
Working  Area  Size (mm): L 600 X W 400 X Z clearance 70mm
Main Frame: Welded mild steel
Motor Driver: MICRO STEP
Motor: Nema23 Stepper Motor  DC36V,
Linear Motion:  Liner Guide
Driving Movement: Ball Screw
Surface Top: MDF Board
Clamp: Screw clamping
Spindle Motor:  2.2kw Water Cooled Spindle
Spindle Speed Max: 18,000 RPM
Collet: ER20 (1mm-13mm)
Cooling System: Water Pump.
Command: G CODE/TAP Files/NC Files.
Multi Task: 2D /3D. YES – Engraving and Cutting.
Controller: PC-Base through parallel port.
Software Environment: Window XP - 32 Bits.
Acceptable Software: MACH3
Moving Pattern: Gantry Moving.


* pls contact us for full specifications*


Monday, 13 February 2017

Mesin Sand Blasting

 CNC Adalah Kepakaran Kami Kerana Kami Sendiri Yang Membuatnya!
CNC Is Our Expertise Because Of Our Own Making!

Selain dari Mesin CNC kami juga turut membuat Mesin Sand Blasting bersaiz kecil dan besar. Kami juga membuat dan menerima untuk memberi kursus berkaitan Sandblasting selain daripada kursus untuk Mesin CNC.

Mesin Sand Blasting ini juga boleh anda tempah secara 'custom-made' mengikut saiz yang sesuai untuk keperluan industri anda.

Kepada pengusaha yang belum ada mesin sand blasting ini,  kami turut mengambil service sandblasting pada kadar upah yang berpatutan.

Sebarang pertanyaan sila berhubung dengan kami.

H/P: 012-5974968  / 012-3647189 (9am - 6pm)
email: kurnia.alrizq@gmail.com









Ditempah Oleh Fitec - Batu Caves, Selangor


Sand Blasting Machine

Gambar di atas adalah salah satu mesin sand blasting yang ditempah oleh pihak Fitec (Furniture Industry Technology Center).

Machine Size: 1200mm (L) x 1600mm (H) x 900mm (W)
Compressor: 5HP
Nozzle: Tungsten Carbide
Operation : Foot Paddle
Capacity: 10kg




Ditempah Oleh: Maktab Teknik PDRM, Muar

Mesin Sand Blasting yang dibuat Oleh Kurnia Al Rizq


Spesifikasi:-
Machine size: 1200mm (L) X 1600mm (H) x 600mm (W)
Nozzle: Tungsten Carbide
Operation: Foot Paddle
Capacity: 10 kg




Ditempah Oleh: Kementerian Kemajuan Luar Bandar dan Wilayah (KKLW) - Untuk Belia Kg Permatang Duku Pontian Johor.


Mini Sandblasting


Mini Sandblasting.
Spesifikasi:-
Machine Size: 750mm (L) x 600mm (W) x 1600mm (H)
Compressor: 2HP
Nozzle: Tungsten Carbide
Operation : Foot Paddle
Capacity: 5kg



Ditempah Oleh: Syarikat Persendirian - Kota Bharu, Kelantan.

Sand blasting machine



Spesifikasi:-
Machine Size: 1200mm (W) x 1600mm (H) x 600mm (D)
Air Compressor: 2HP
Nozzle: Tungsten Carbide
Operation : Foot Paddle
Tank Capacity: 10kg

* for blast mirror, tiles,*



Ditempah Oleh: Syarikat Persendirian - Bukit Gambir, Johor.

Mesin Sand Blasting

Saiz besar - 5' x 5'


Untuk penggunaan kerja bersaiz besar seperti enjin kereta dan lori.

SPECIFICATIONS:-
Machine Size (mm): W: 1500 x D: 1500 H: 1600
Machine Working Size (mm): W: 1200 x D: 1200 x H: 1200
Nozzle: Tungsten Carbide
Operation: Foot Paddle
Capacity: Max 40kg

* Turn table for easy blast process.
*Front Glass panel for easy monitoring.
*Parts and component blasting.
*Side door opening for abrasive input.
*Dust extractor.
*Self recycle abrasive tank.
*Foot paddle operation for convenient usage.


Ditempah Oleh: Syarikat Persendirian - Melaka


Mesin Sand Blasting



Turn Table - memudahkan pergerakkan kerja.


SPECIFICATIONS:-
Machine Size (mm): W: 1500 x D: 1500 H: 1600
Machine Working Size (mm): W: 1200 x D: 1200 x H: 1200
Nozzle: Tungsten Carbide
Operation: Foot Paddle
Capacity: Max 40kg

* Turn table for easy blast process.
*Front Glass panel for easy monitoring.
*Parts and component blasting.
*Side door opening for abrasive input.
*Dust extractor.
*Self recycle abrasive tank.
*Foot paddle operation for convenient usage.



Ditempah Oleh: Sebuah Institut Pendidikan Malaysia


Sand Blasing Semi Auto

Bahagian dalam mesin

Robot arm inovasi dari kami untuk mesin sand blasting ini

Semi-Auto Sand Blasting Machine:-

Machine Size (mm) W: 1200 x H: 1600 x D: 800
Nozzle:  Tungsten Carbide
Operation : Foot Paddle
Capacity:  Max 40kg

*Front Glass panel for easy monitoring.
* Multipurpose blasting machine such for glass art or stone art etching.
*Parts and component blasting.
*Front door opening for abrasive input.
*Side opening on both side panels for material input and output.
*Dust extractor.
*Self recycle abrasive tank.
*Foot paddle operation for convenient usage.

*Can accommodate flat material maximum up to 4ft x 8ft.



Ditempah Oleh: Salah sebuah institut pendidikan di Malaysia.


Sand Blasting saiz kecil

Turn Table di dalam untuk memudahkan kerja


Sand Blasting Machine (saiz kecil)

Specifications:-

Machine Size: (mm) W: 900 x D: 900 H: 1600
Nozzle: Tungsten Carbide
Operation: Foot Paddle
Capacity: Max 10kg

*Turn table 600mm diameter for easy operation.
*Front Glass panel for easy monitoring.
*Parts and component blasting.
*Front door opening for abrasive input.
*Dust extractor.
*Self recycle abrasive tank.
*Foot paddle operation for convenient usage.
